IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

Brand Name : ASLI

Place of Origin : Guangdong, China

Model Number : ES-20

MOQ : 1

Price : $26,890

Vibration direction : vertical vibration

Vibration force : 20KN

Control method : computer control

Acceleration : 100g

Frequency range : 3~3500hz

Moving coil weight : 14kg (ES-10), 30kg (ES-20), 40kg (ES-30), 50kg (ES-40)

Power type : Electronic

Rated Sine Force : 10000N (ES-10), 20000N (ES-20), 30000N (ES-30), 40000N (ES-40)

Frequency Range : 3-3000Hz (ES-10, ES-20), 3-2800Hz (ES-30, ES-40)

Rated Acceleration : 1000 m/s2

Rated Speed : 1.8 m/s

Rated displacement : 70mm (ES-10), 80mm (ES-20), 11100mm (ES-30), 100mm (ES-40)

Max Loading : 270kg (ES-10), 300kg (ES-20), 450kg (ES-30), 500kg (ES-40)

Moving coil dimension : Φ240mm (ES-10), Φ320mm (ES-20), Φ450mm (ES-30, ES-40)

Contact Now

Product Description
IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
Specification
Model
ES-10
ES-20
ES-30
ES-40
Rated Sine
Force (N)
10000
20000
30000
40000
Frequency
Range (Hz)
3-3000
3-3000
3-2800
3-2800
Rated Acceleration (m/s2)
1000
1000
1000
1000
Rated Speed (m/s)
1.8
1.8
1.8
1.8
Rated displacement
(p-p) mm
70
80
11100
100
Max. Loading (Kg)
270
300
450
500
moving coil(Kg)
14
30
40
50
Dimension of
Moving coil (mm)
Φ240
Φ320
Φ450
Φ450
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and
the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.

Horizontal table features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

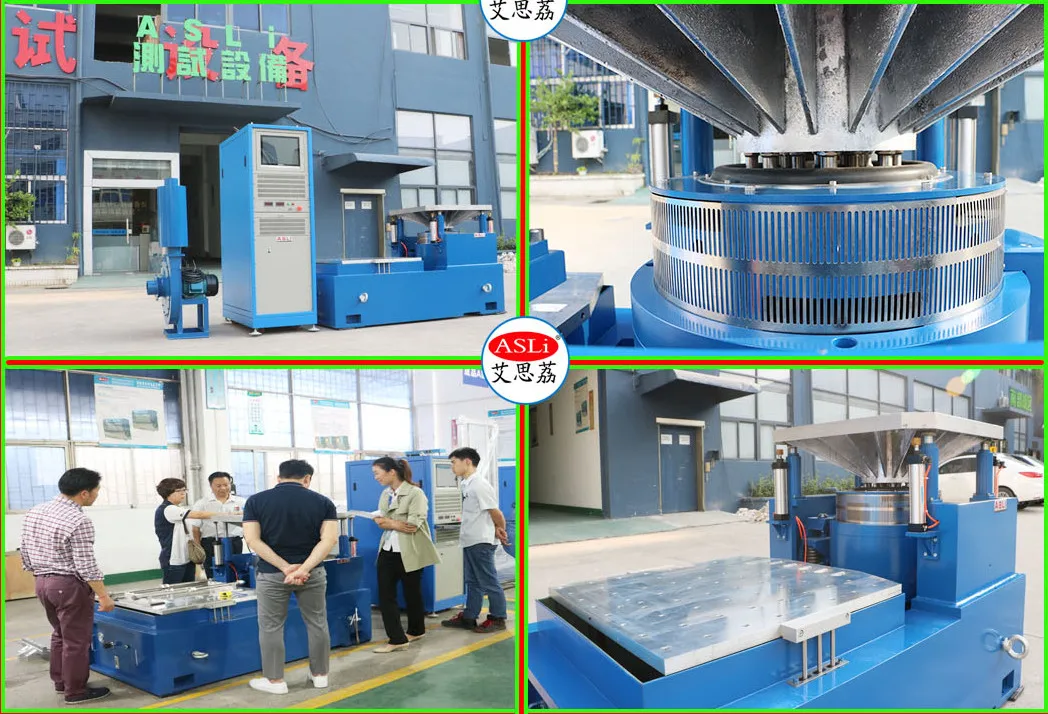

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

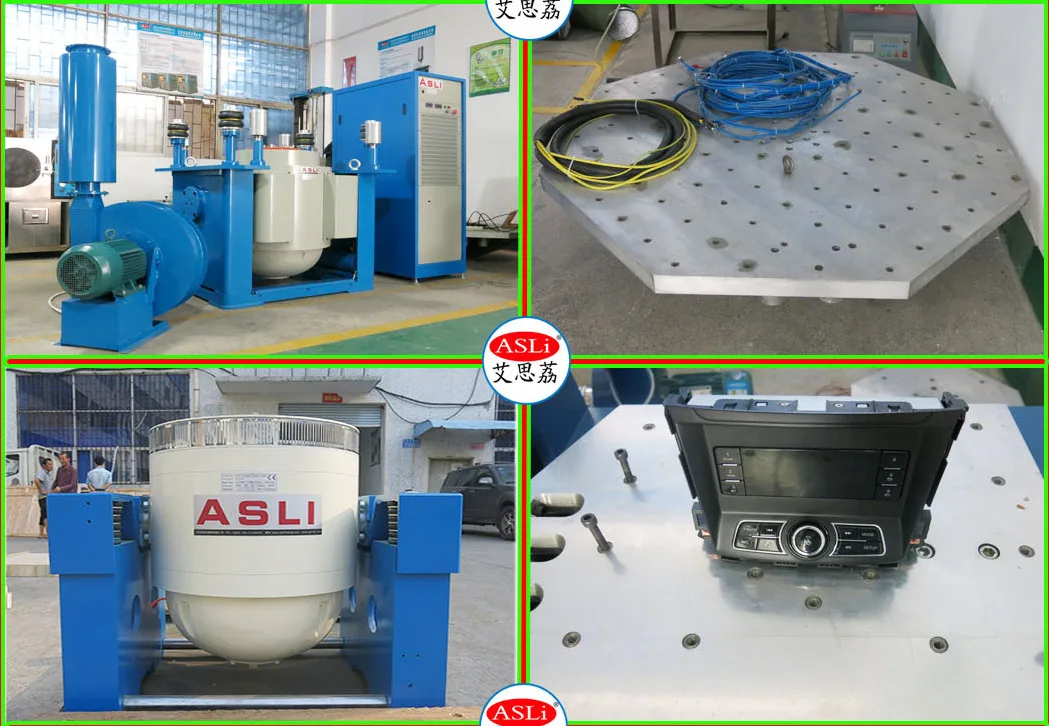

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
Packing & Delivery
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is our star products , and we had obtained the CE certification for this machine .
FAQ
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please feel free to contact us.
