10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System

Name: 10KN Vibration Testing Machine with 100g Acceleration for ISO 1675003 Sine Sweep Vibration Shaker System
Brand: ASLI
Price: 23 USD

Quality 10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System for sale

Brand Name : ASLI

Place of Origin : Guangdong, China

Model Number : ES-10

MOQ : 1

Price : $23,500

Vibration force : 10KN

Vibration direction : vertical + horizontal

Acceleration : 100g

Moving coil size : Dia. 240mm

Displacement : 51mm

Frequency range : 3-3000Hz

Rated acceleration : 1000m/s2

Rated speed : 1.8m/s

Max loading : 270Kg

Moving coil weight : 14Kg

Rated sine force : 10000N

Power type : Electronic

Table size : customized

Test standards : ISO 16750-03, IEC 60068-2

Moving coil dimension : Φ240mm

Contact Now

Product Description

Vertical Vibration Testing Machine For Sine Sweep Vibration Testing adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System

Specification

Model	ES-6	ES-6a	ES-10	ES-20
Rated Sine Force (N)	6000	6000	10000	20000
Frequency Range (Hz)	3-3500	3-3500	3-3000	3-3000
Rated Acceleration (m/s2)	1000	1000	1000	1000
Rated Speed (m/s)	1.6	1.6	1.8	1.8
Rated displacement (p-p)mm	25	51	51	51
Max. Loading (Kg)	180	250	270	300
moving coil (Kg)	6.5	12	14	30
Dimension of Moving coil (mm)	Φ230	Φ230	Φ240	Φ320
Vibration Direction	Vertical, horizontal, Vertical+horizontal vibration

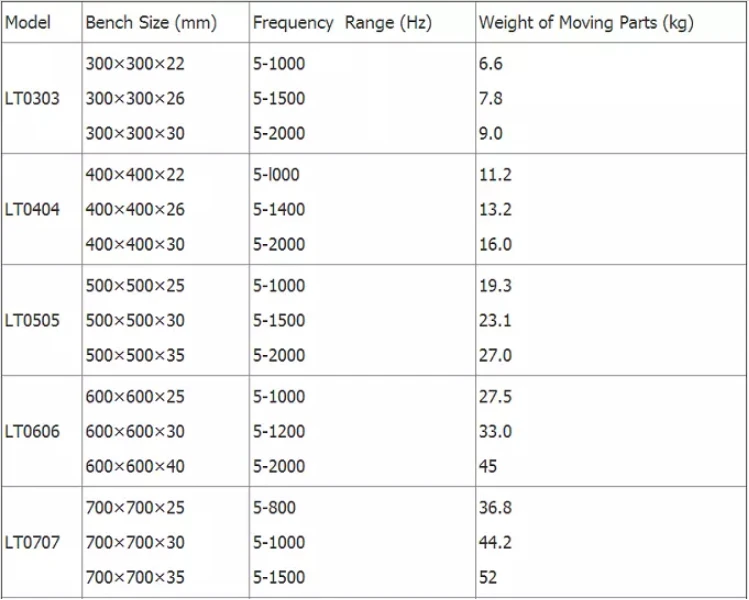

For Vertical Expander
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

For Horizontal Expander
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

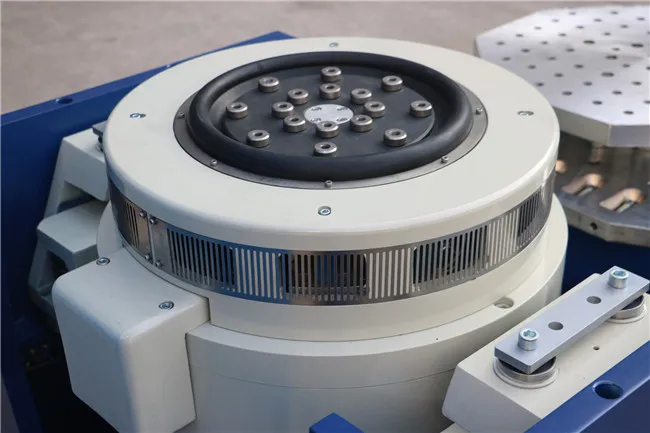

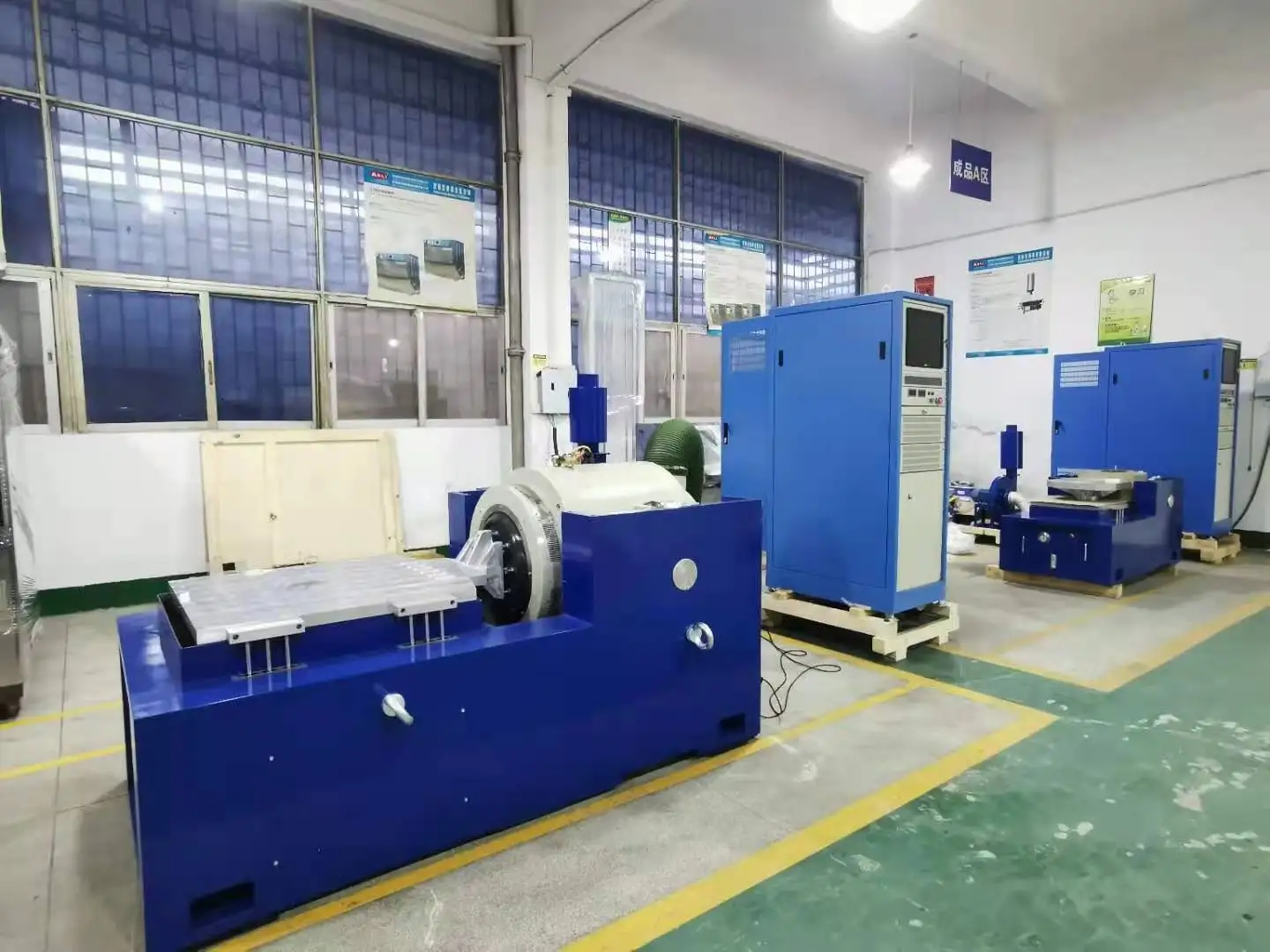

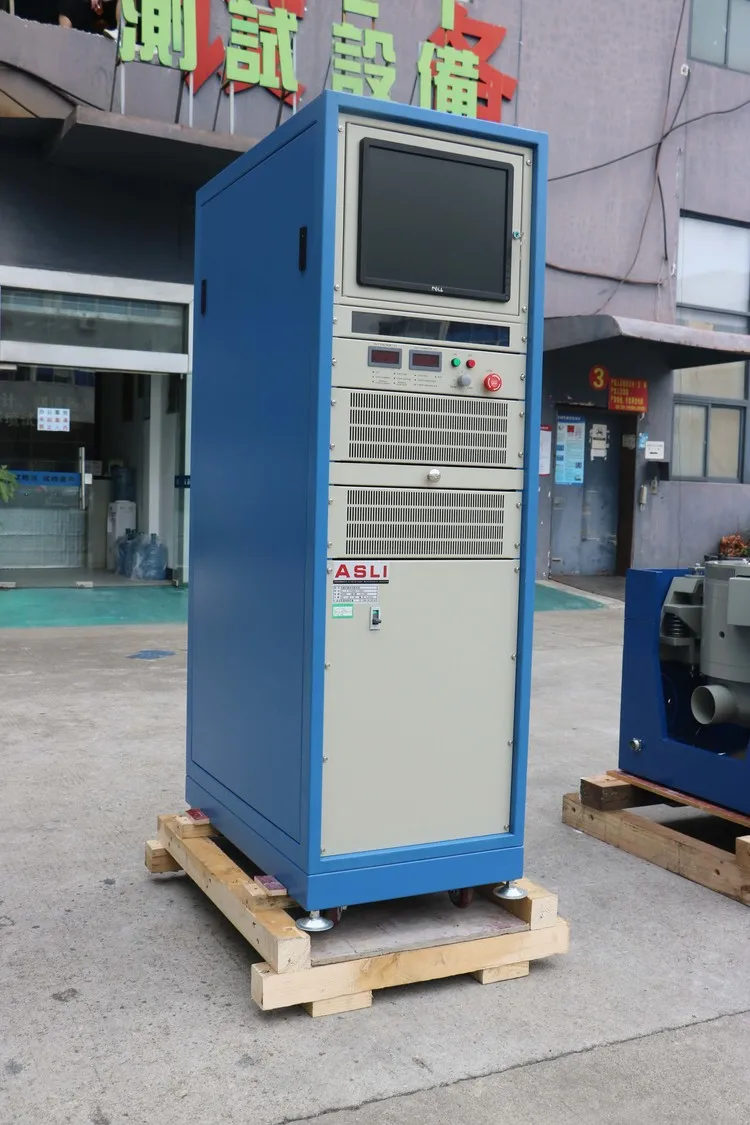

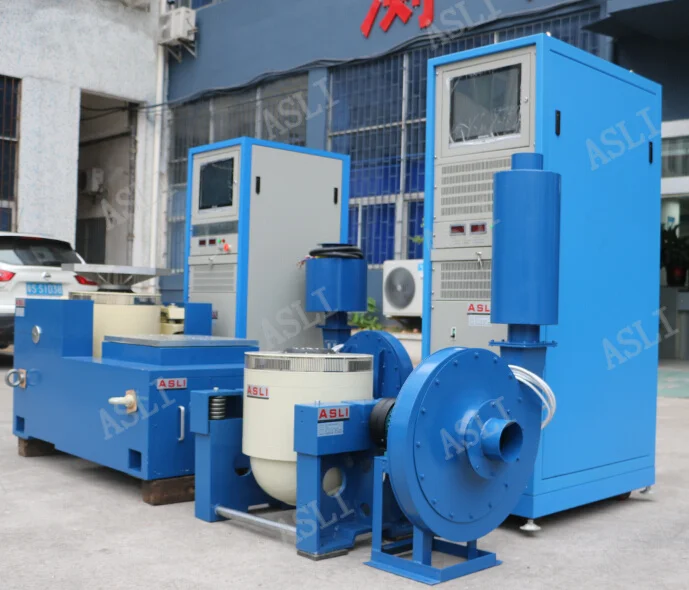

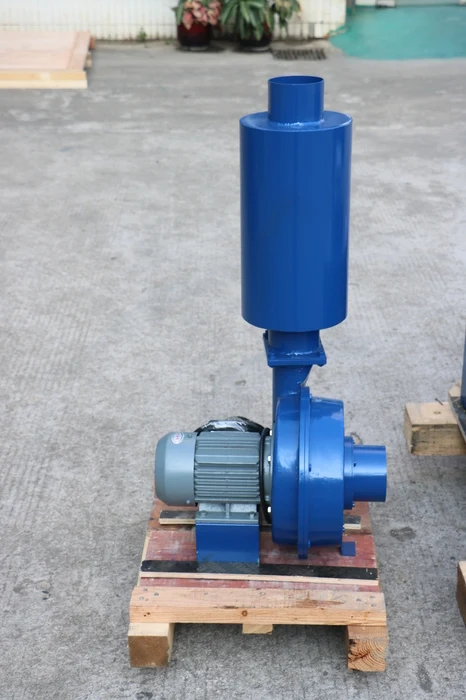

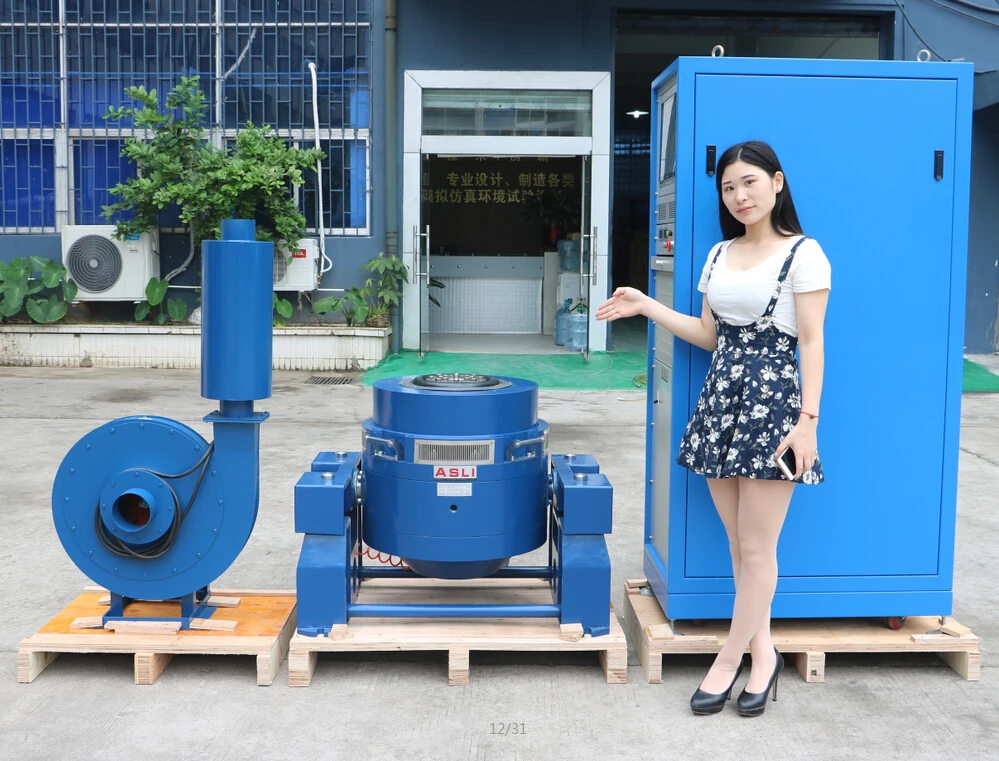

Pictures for your reference

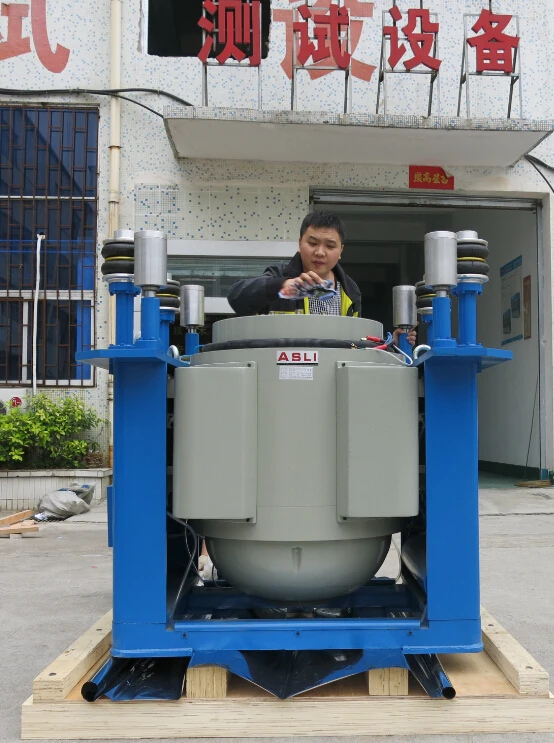

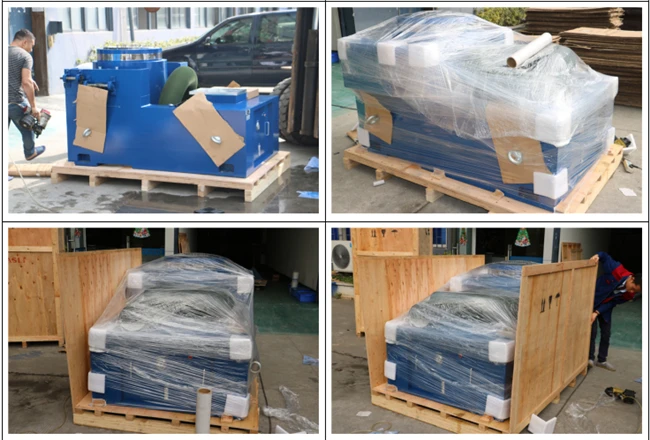

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

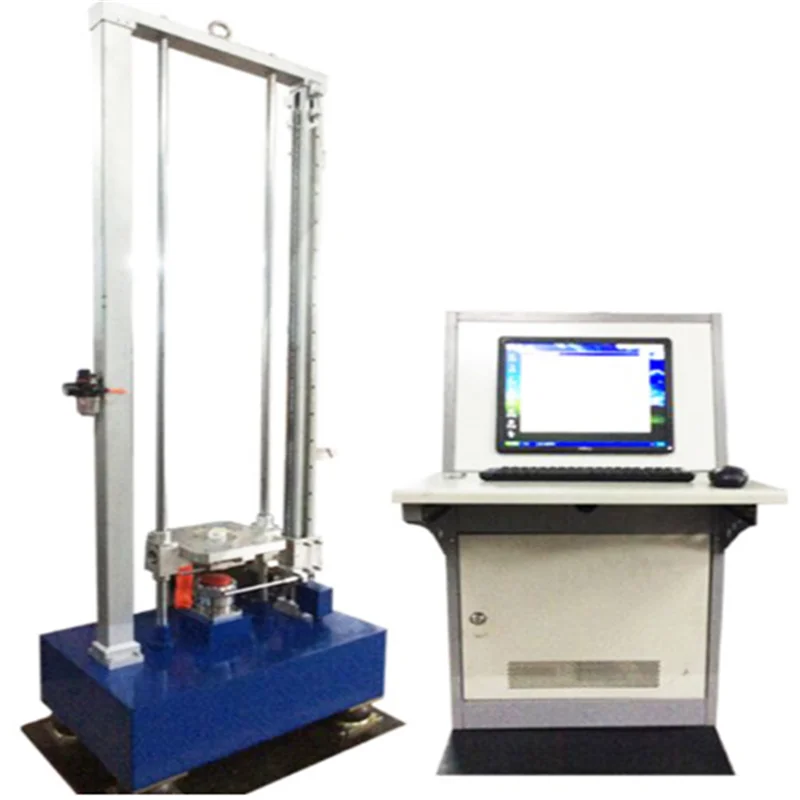

Mechanical Shock Tester

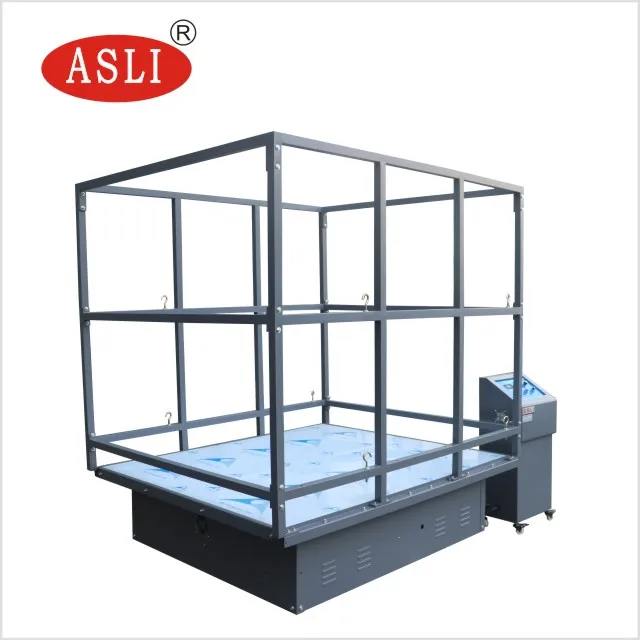

Transportation Simulator Vibration Tester

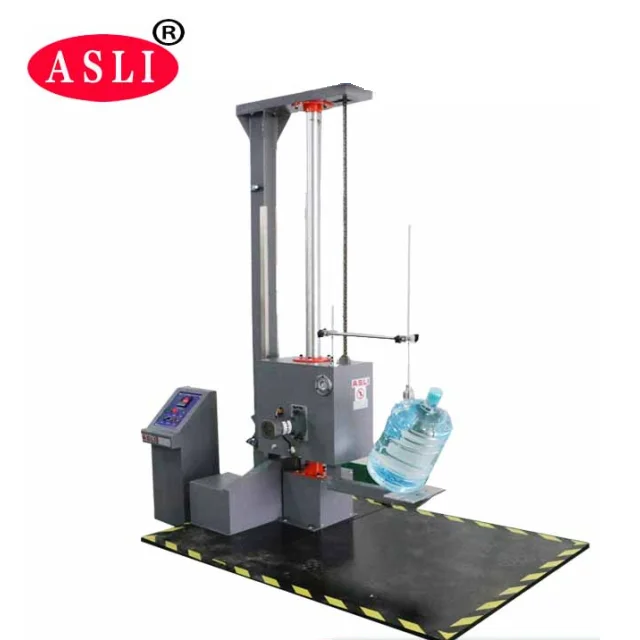

Drop Test Machine

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. vibration testing machine for packages cartons is our star products, and we had obtained the CE certification for this machine .

FAQ

Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF. DAP, DDU, DDP

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about Vertical Vibration Testing Machine For Sine Sweep Vibration Testing , please don't hesitate to contact us.
